| type | central
argon supply for Geology building transportable vacuum isolated liquid argon tank installed outside the building |
| contents | 600 Liters liquid Argon (-186° C) equivalent to approximately 500 m³ gaseous Argon (equivalent to 50 standard cylinders of 50 Liter / 200 bar) |
| work pressure | 12 bars on tank and building gas pipe |
| Ar consumption |
ICP-AES : operation
10 m³ / 8 hours, standby 1 m³ / 8 hours |
| supply duration | 3
months without consumption due to evaporation (minimum evaporation
approx. 5 m³ /24 h) 1 month at normal consumption |

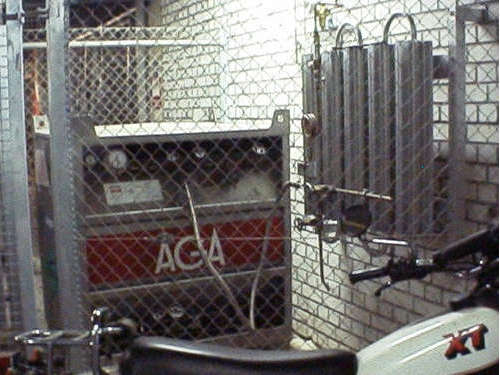

| Liquid
Argon tank |
 |
